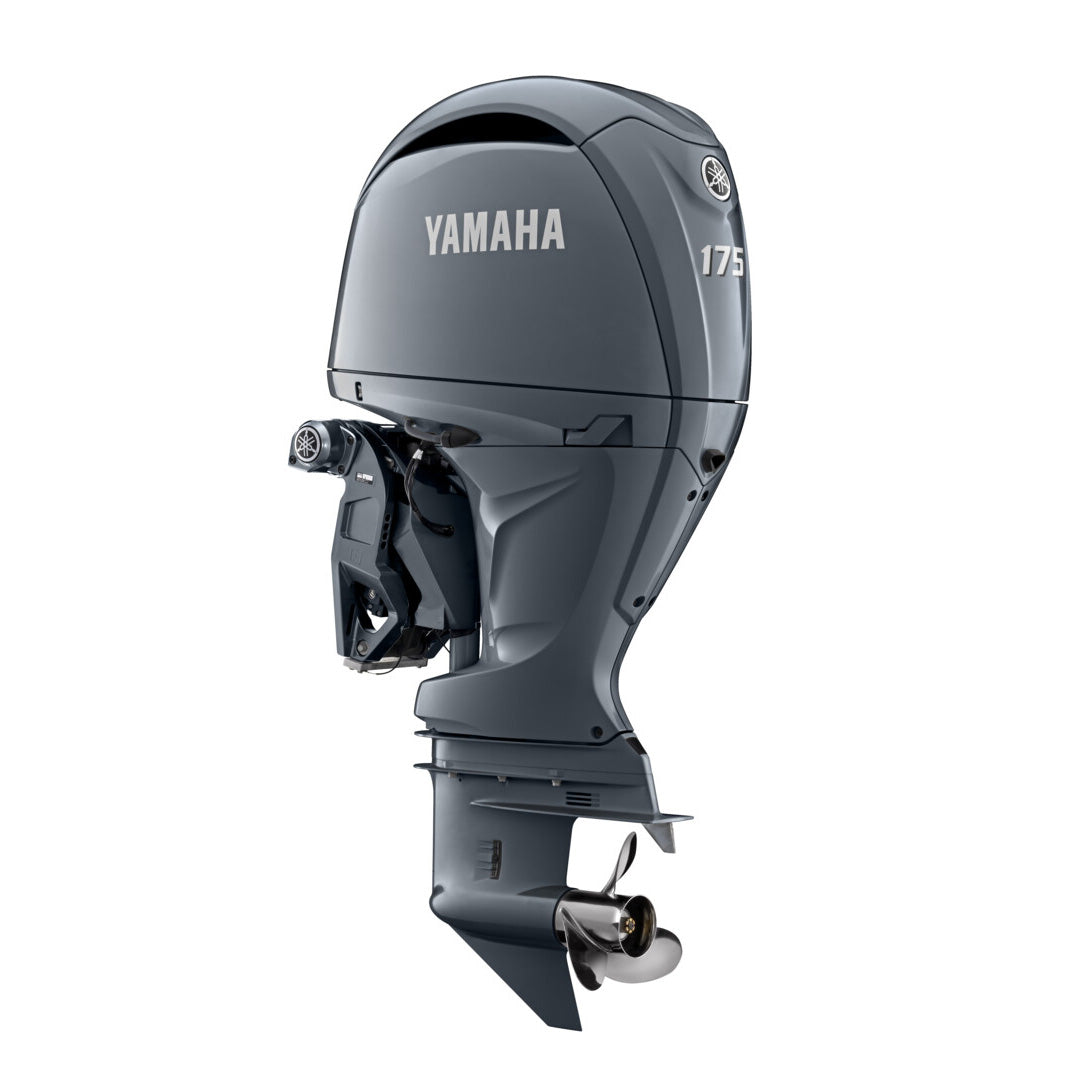

Yamaha’s popular and proven range of F175 Digital and Mechanical Control outboards now feature a newly designed look and integrated steering, taking these engines to the next level when it comes to power, reliability and control.
The Integrated Hydraulic Steering system is housed in a neat, sealed cylinder unit, which is built into the transom bracket of the engine, rather than being a third-party bolt-on component. This results in a simple and clean rigging set-up, and an uncluttered bilge and transom area, while exposing less components to the elements for improved long-term durability and reliability.
This new range of four-cylinder integrated steering models are ideal for all applications, including new boat packages, existing boat repowers and multi engine set-ups.
The modernised F175 outboards bring a new level of delight to boating.
-
Engine Type: 4-Stroke, 16 Valve DOHC Direct Action In-Line 4
-
Bore x Stroke: (mm)96 x 96.2
- Displacement (cc): 2785.0
-
Recommended Maximum RPM: 5000-6000
-
Fuel Management: EFI
-
Ignition: TCI
-
Lubrication System: Wet-sump
-
Alternator Output: 12V - 50A with rectifier regulator
-
Gear Ratio: 1.86 : 1
-
Starter System: Electric
-
Operation Method: Drive by wire remote control
-
Trim and Tilt Method: Power Trim & Tilt
-
Digital Gauges: Optional
-
Command Link Gauges: Optional
