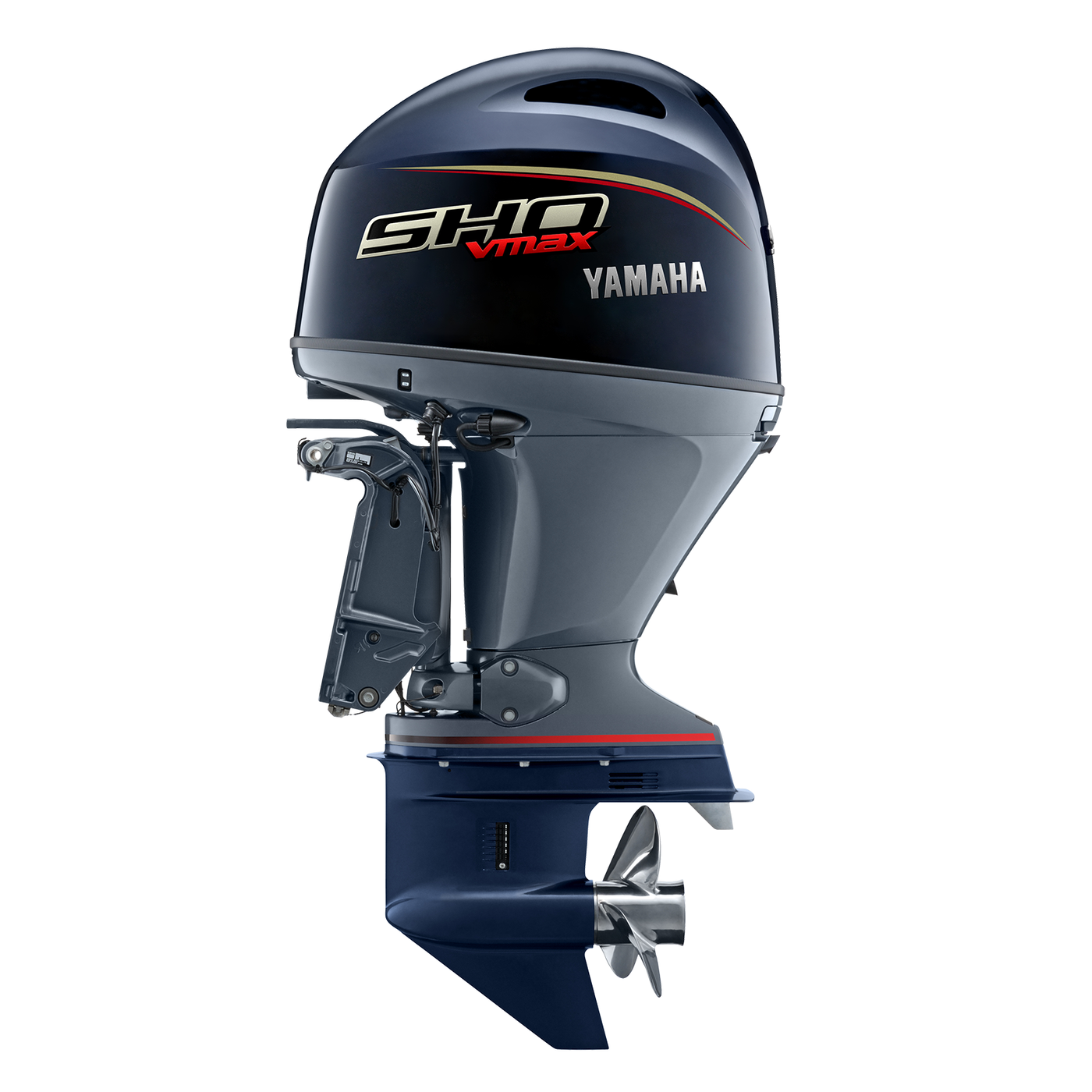

VF90 Yamaha 4 Stroke
The all-new Yamaha 90-horsepower In-Line Four V MAX SHO® may be the smallest in the V MAX SHO® line, but it packs the biggest punch of any 90-horse on the water.
Its SOHC four-valve-per-cylinder design minimises weight while optimizing combustion. In fact, its lightweight design combined with 1.8L displacement makes the VMAX SHO 90 the class leader in torque and top speed. A reconfigured gear ratio also gives the VMAX SHO 90 greater holeshot and improved top-end speed over it's F90 sibling. The all-new Yamaha VMAX SHO 90, the latest addition to the VMAX family.
TECHNICAL SPECIFICATIONS
- Engine Type: 4-Stroke, 16 Valve SOHC In-line 4 Cylinder
- Bore x Stroke (mm): 81.0 x 88.9
- Displacement (cc)1832.0
- Recommended Maximum RPM: 5000-6000
- Fuel Management: EFI
- Ignition: TCI
- Lubrication System: Wet-sump
- Alternator Output: 12V - 35A with Rectifier Regulator
- Gear Ratio: 2:33:1
- Starter System: Electric
- Operation Method: Mechanical Control (Optional Tiller Handle Available)
- Trim and Tilt Method: Power Trim & Tilt
- Digital Gauges: Optional
- Command Link Gauges: Optional
- Transom Height (mm [inch])L: 516 [20.3] | X: 643 [25.3]
- Dry Weight (kg)L: 160 | X: 164
