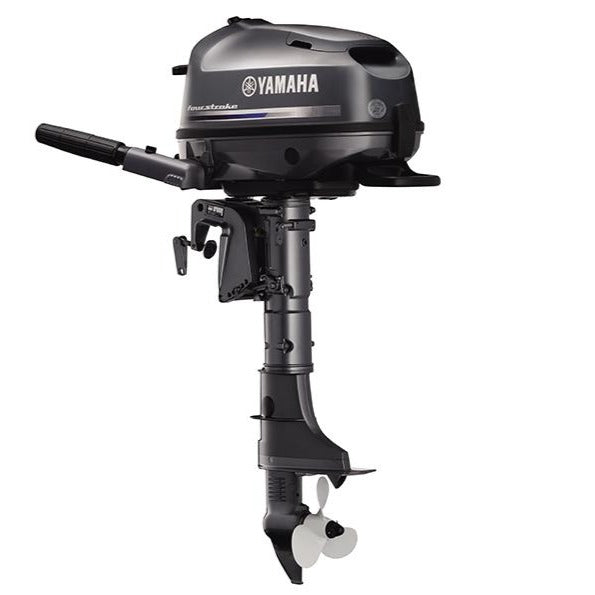

F6SMHA Yamaha 4 Stroke

Lightweight, compact and economical, Yamaha’s single cylinder F6 portable has been designed to be ultra-easy to use and transport. Featuring a specially developed four- stroke, Overhead Valve (OHV) design, this engine delivers excellent fuel efficiency and smooth running. Attention to detail makes Yamaha small engines great - delivering a user experience that stands head and shoulders above anything else.

TECHNICAL SPECIFICATIONS

• Engine Type: 4-Stroke, OHV, 1-cylinder
• Bore x Stroke (mm): 62 x 46
• Fuel Tank Capacity (l): 1.1
• Displacement (cc): 139.0
• Recommended Maximum RPM: 4500-5500
• Fuel Management: Carb
• Ignition: CDI
• Lubrication System: Wet sump
• Alternator Output: 12V-6Amp with Rectifier Regulator (optional)
• Gear Ratio: 2.08:1
• Starter System: Manual Choke
• Operation Method: Tiller Handle
• Trim and Tilt Method: Manual Tilt
