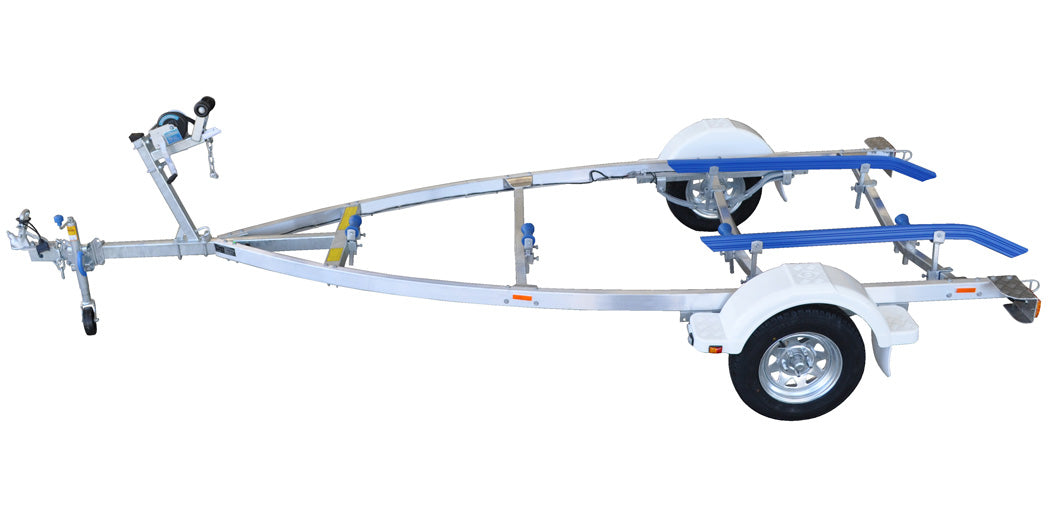

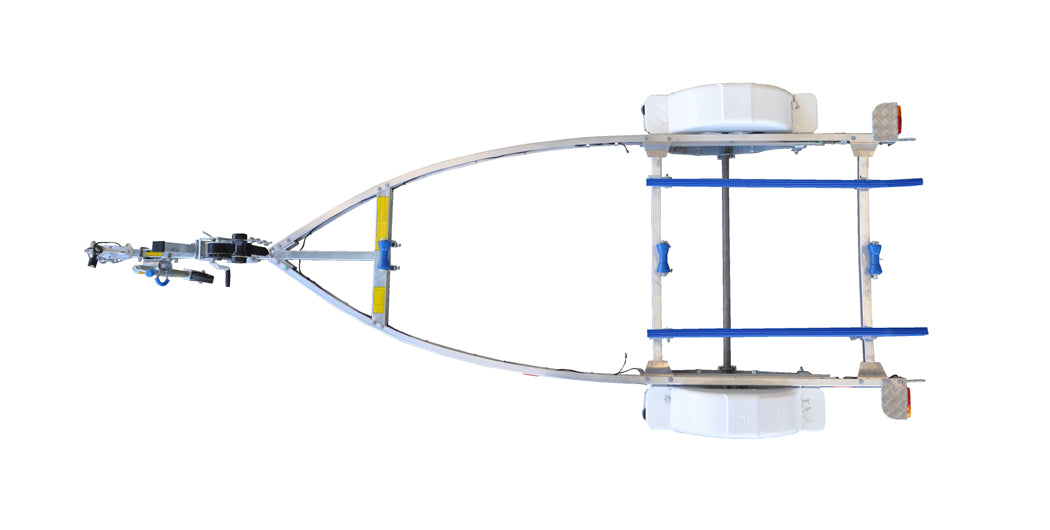

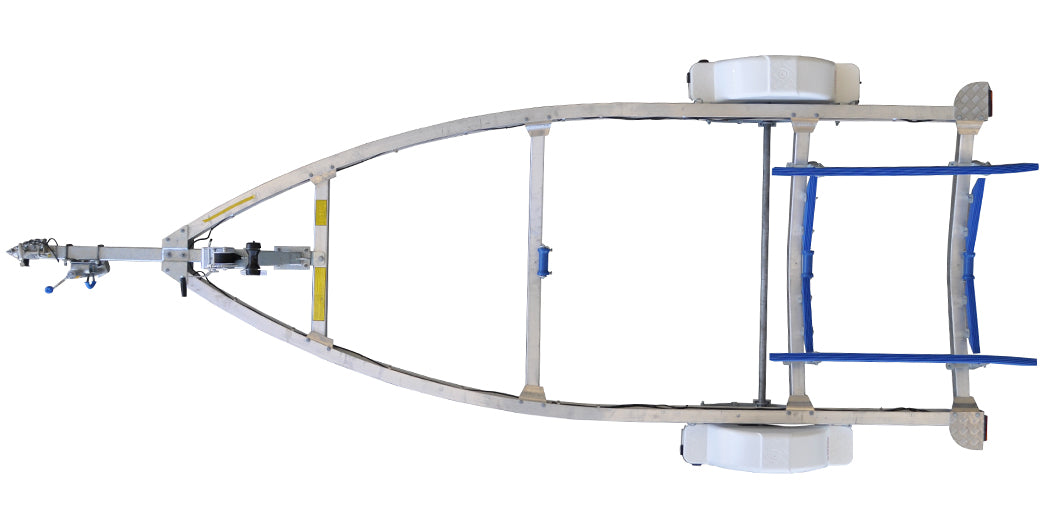

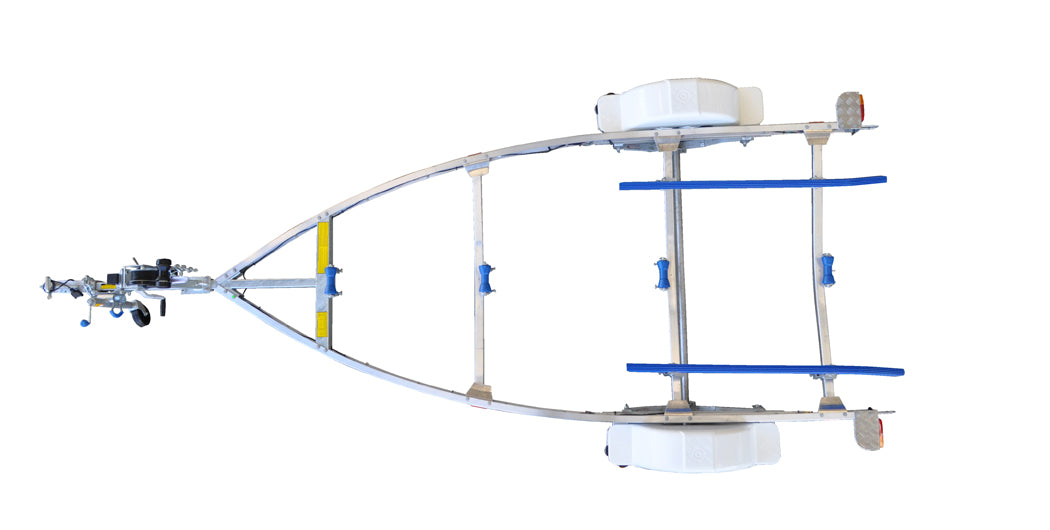

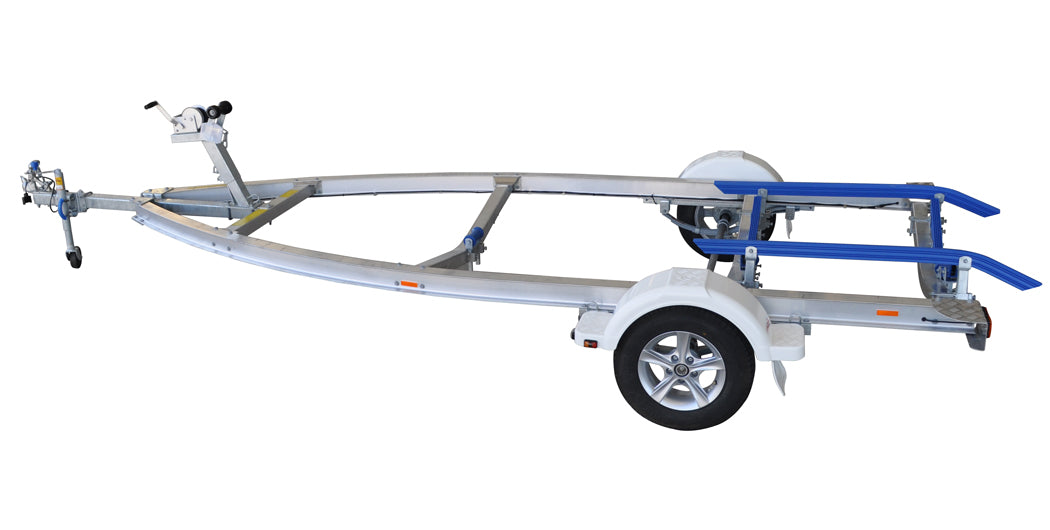

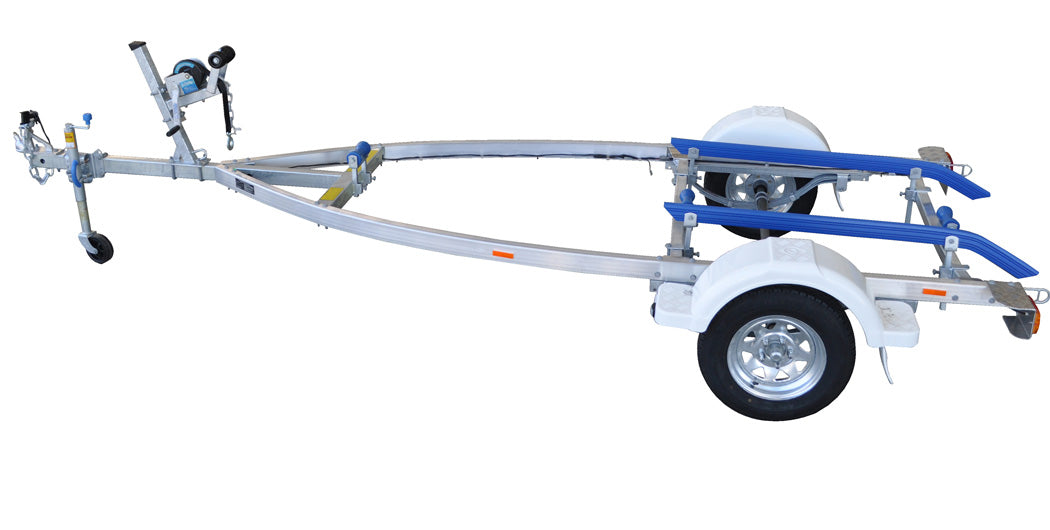

The smallest model in the range, this aluminum trailer is built to suit a range of boats between 3.5 - 4 metres long.
| Specification |
749kg S |
749kg L |
749kg Standard |
| Beam |
1.85m |
2.14m |
2.25m |
| Hull Length |
4.54m |
4.95m |
5.7m |
| Length Overall |
4.54m |
4.8m |
5.36m |
| Width Overall |
1.82m |
2.14m |
2.25m |
| Width Between Guards |
1.37m |
1.67m |
1.8m |
| Tare Weight |
140kg |
160kg |
220kg |
| Aggregate Trailer Mass |
749kg |
749kg |
749kg |
| Gross Trailer Mass |
740kg |
740kg |
749kg |
| Springs |
4 |
4 |
4 |
| Wheel |
13" |
13" |
165R13LT |
| Tyre |
165 |
165 |
165 |
| Trailer Brakes |
No |
No |
Not Braked |
| Feature |
749kg S |
749kg L |
749kg Standard |
| Wheels |
13" Steel Galvanised |
13" Steel Galvanised |
13" Alloy |
| Cross Members |
2 Alloy |
3 Alloy |
4 Alloy |
| Frame |
✗ |
✗ |
Rolled Frame Alloy I-Beam |
| Axle |
39mm (Round) |
| Coupling |
50mm Non Brake |
| 7 Pin Plug |
✓ |
✓ |
✓ |
| Adjustable Keel Rollers |
✓ |
✓ |
✓ |
| Adjustable Long Skids |
✓ |
✓ |
✓ |
| Motor Support |
✓ |
✓ |
✓ |
| Flippers (4) |
✗ |
✗ |
✓ |
| Draw Bar |
✓ |
✓ |
✓ |
| LED Lights |
✓ |
✓ |
✓ |
| Forward Facing White Light |
✓ |
✓ |
✓ |
| Clearance Lights |
✗ |
✓ |
✓ |
| Winch 5:1 |
✓ |
✓ |
✓ |
| Swing Up Jockey Wheel |
✓ |
✓ |
✓ |
