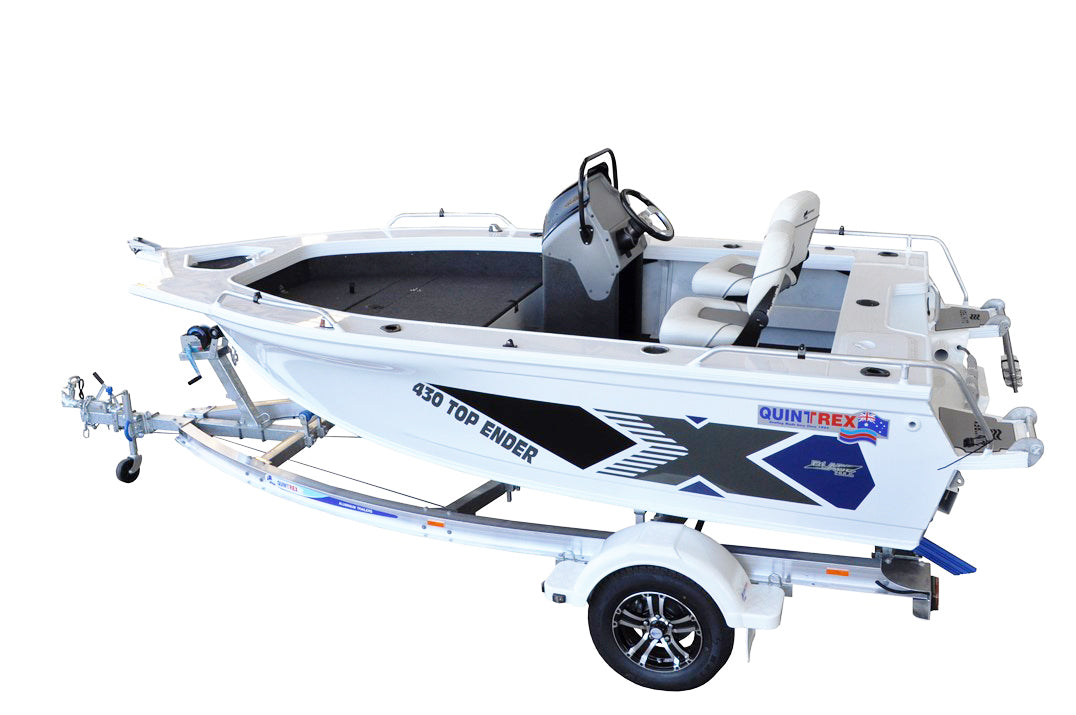

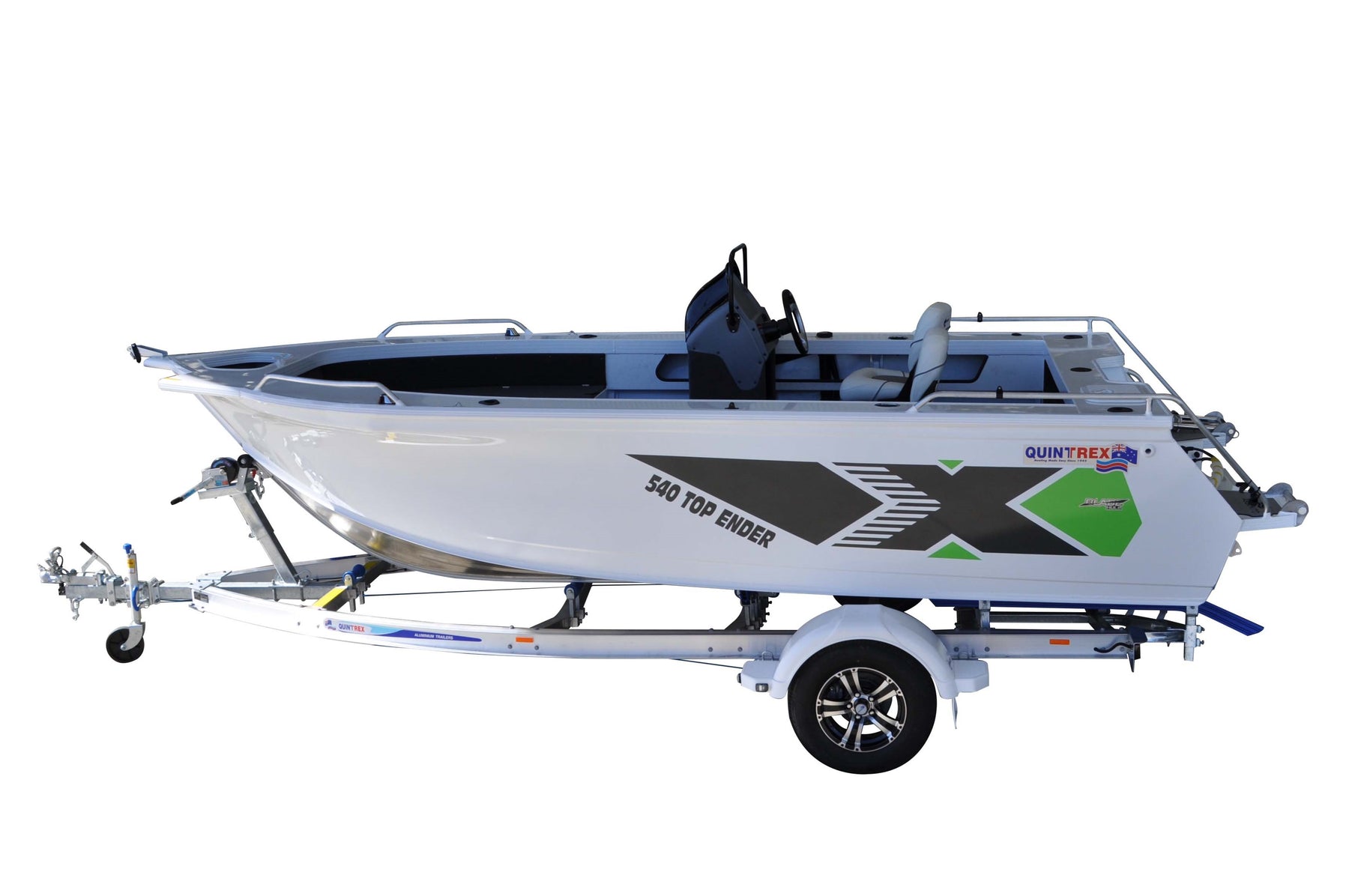

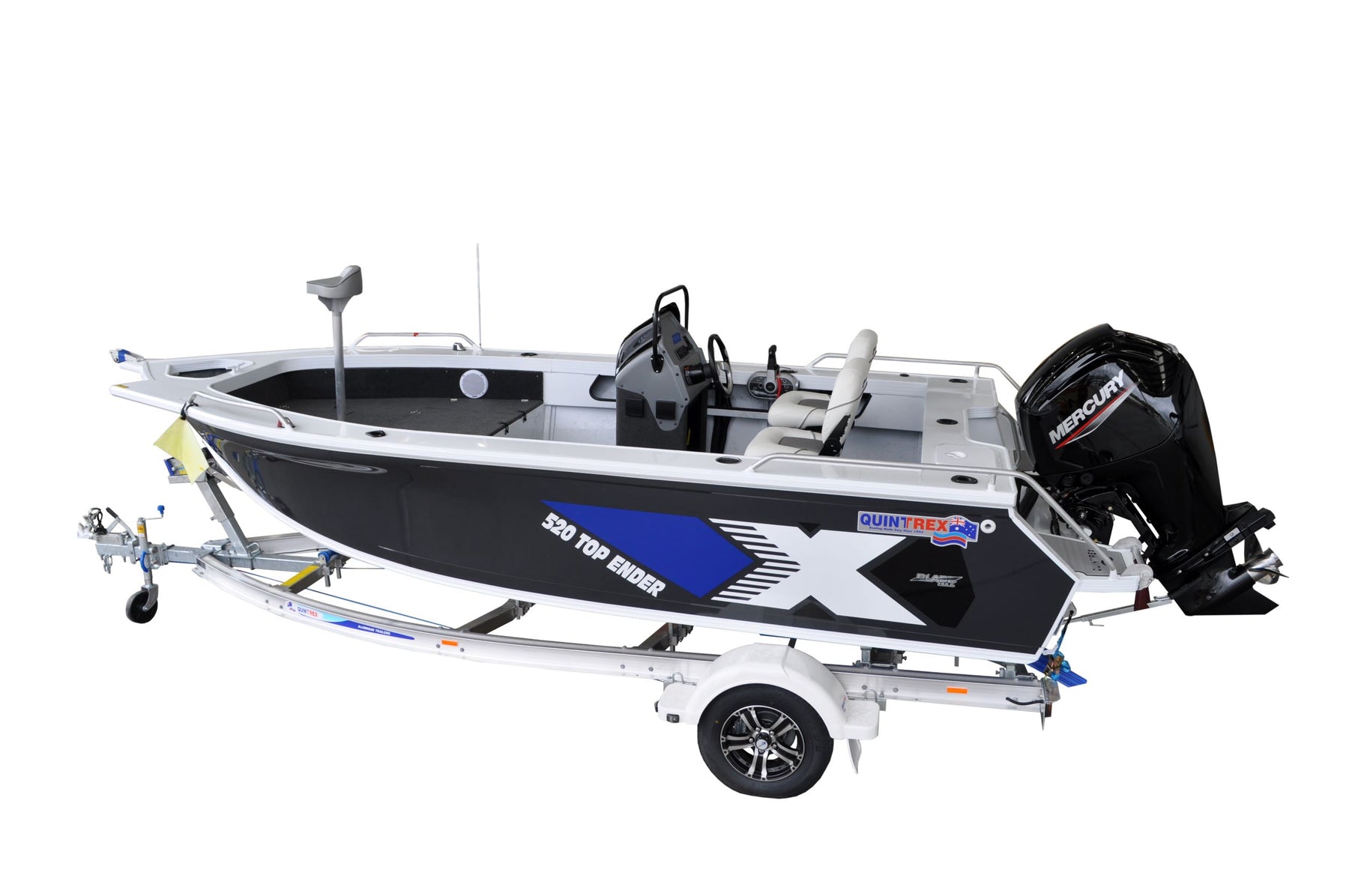

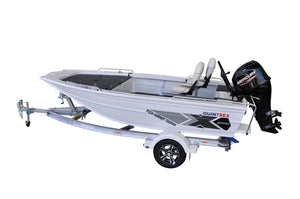

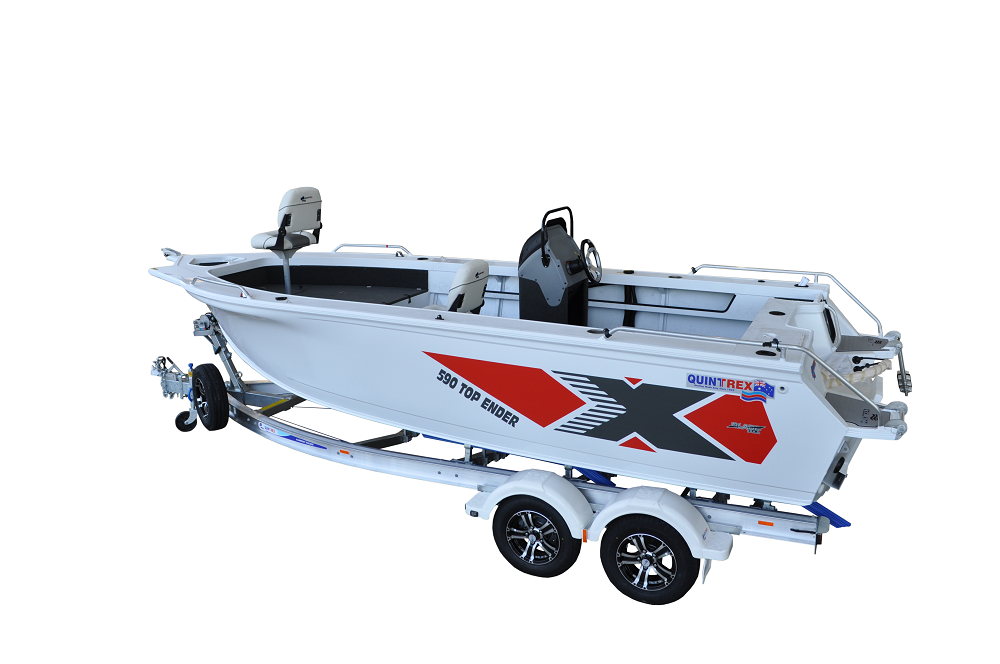

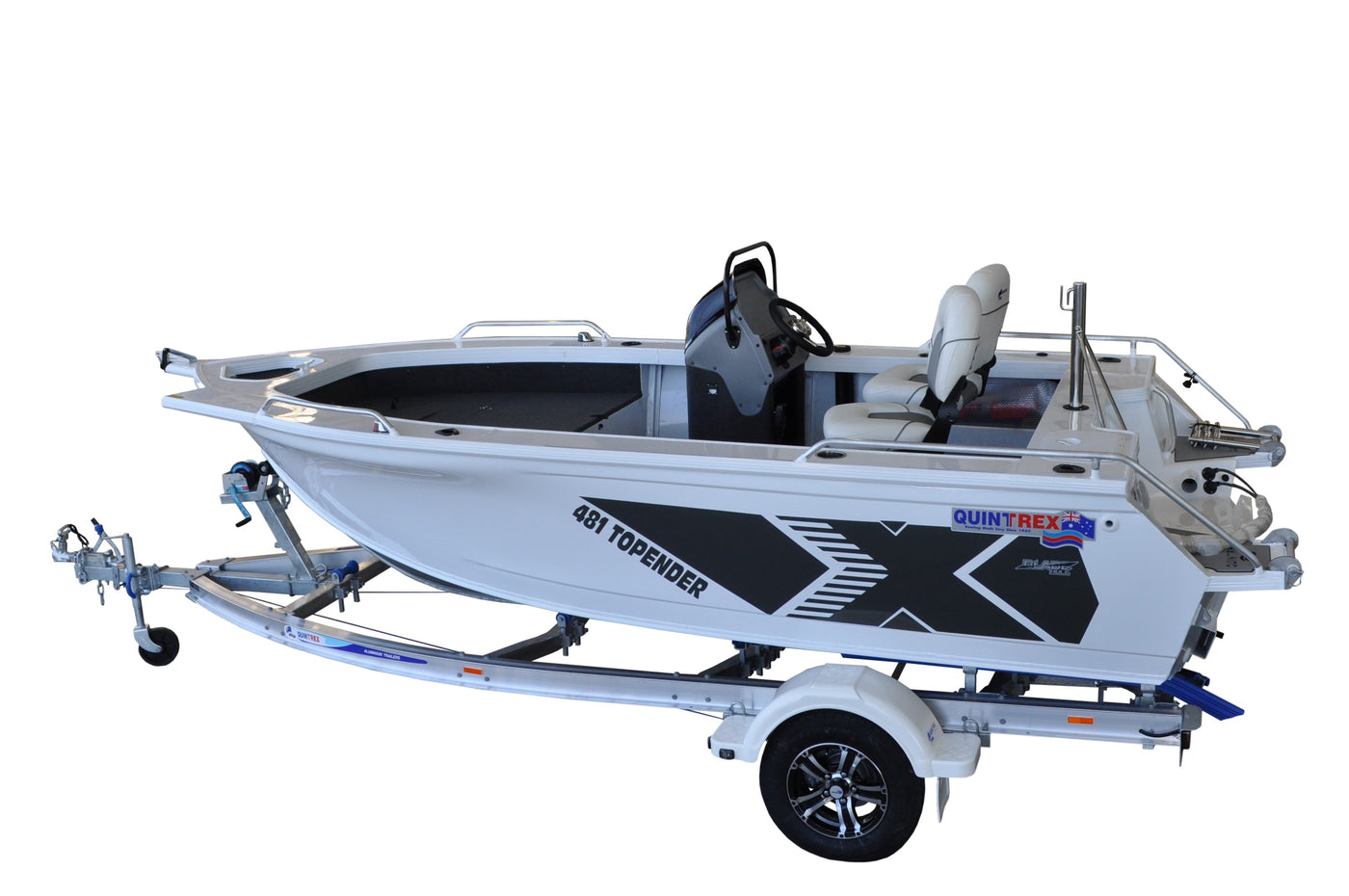

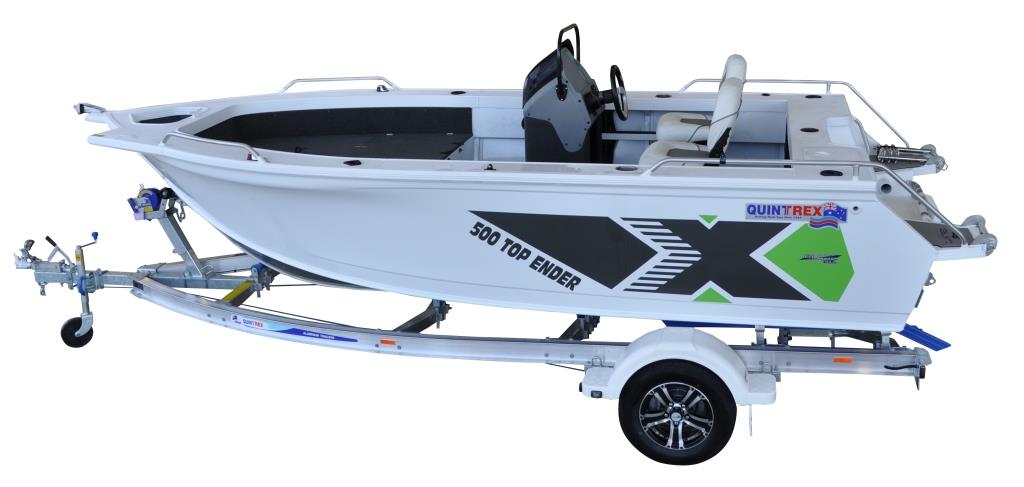

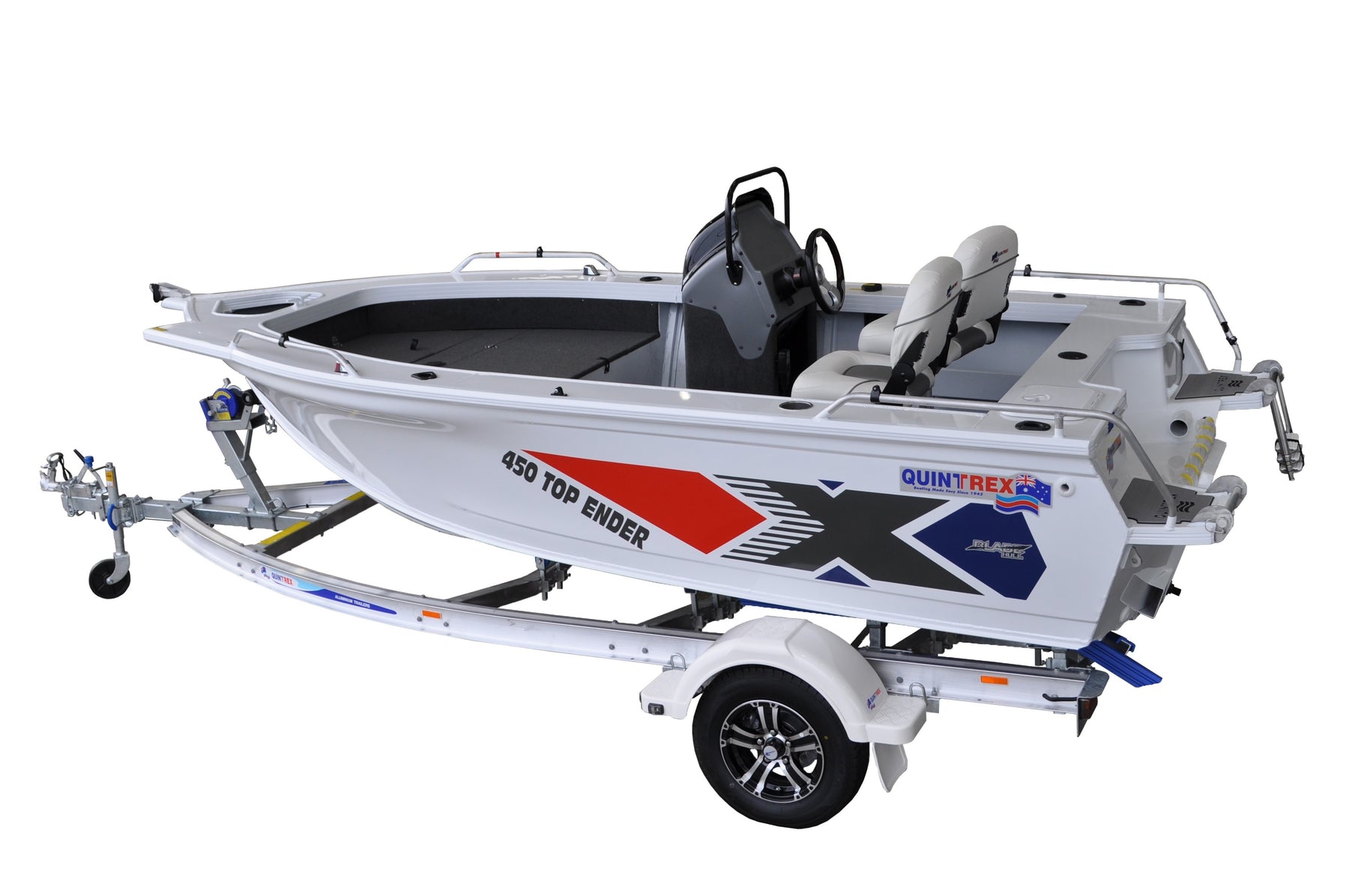

The Top Ender range is one of Australia's most sought-after fishing boats, and for good reason. Featuring the Blade Hull, deep freeboard, front and rear casting platform, live bait tank and more, this little beauty is built for sports angling.
| Specification |
430 |
450 |
481 |
500 |
520 |
540 |
590 |
| Hull Length |
4.57m |
4.78m |
5.09m |
5.37m |
5.49m |
5.68m |
6.19m |
| Beam |
2.14m |
2.14m |
2.14m |
2.20m |
2.20m |
2.30m |
2.30m |
| Max. HP |
60hp |
75hp |
90hp |
90hp |
115hp |
140hp |
150hp |
| Number of People |
5 |
5 |
5 |
5 |
5 |
6 |
6 |
| Fuel Tank |
Under Floor 55L |
Under Floor 55L |
Under Floor 80L |
Under Floor 80L |
Under Floor 95L |
Under Floor 95L |
Under Floor 110L |
| Boat Weight |
428kg |
473.5kg |
449kg |
505kg |
513kg |
577kg |
625kg |
| Motor Weight |
130kg |
166kg |
185kg |
185kg |
195kg |
220kg |
255kg |
| Transom Shaft Length |
LS |
LS |
LS |
LS |
LS |
L/S |
XLS |
| Top Sides |
3mm |
3mm |
3mm |
3mm |
3mm |
3mm |
3mm |
| Bottom Sides |
3mm |
4mm |
4mm |
4mm |
4mm |
4mm |
4mm |
| Transom Material |
3mm |
4mm |
4mm |
4mm |
4mm |
4mm |
4mm |
| Feature |
430 |
450 |
481 |
500 |
520 |
540 |
590 |

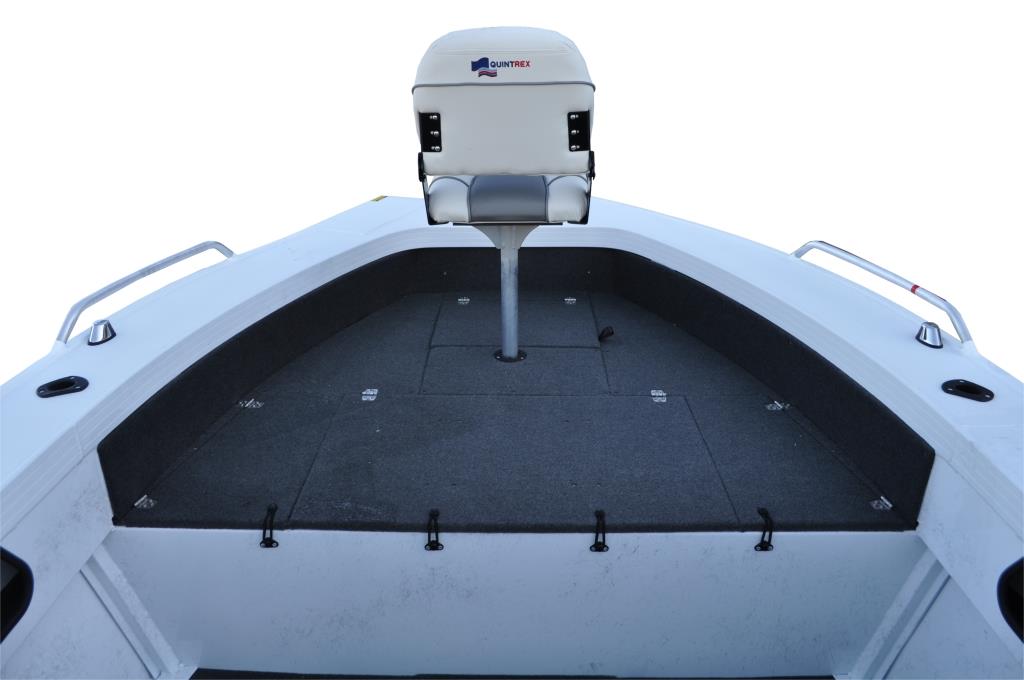

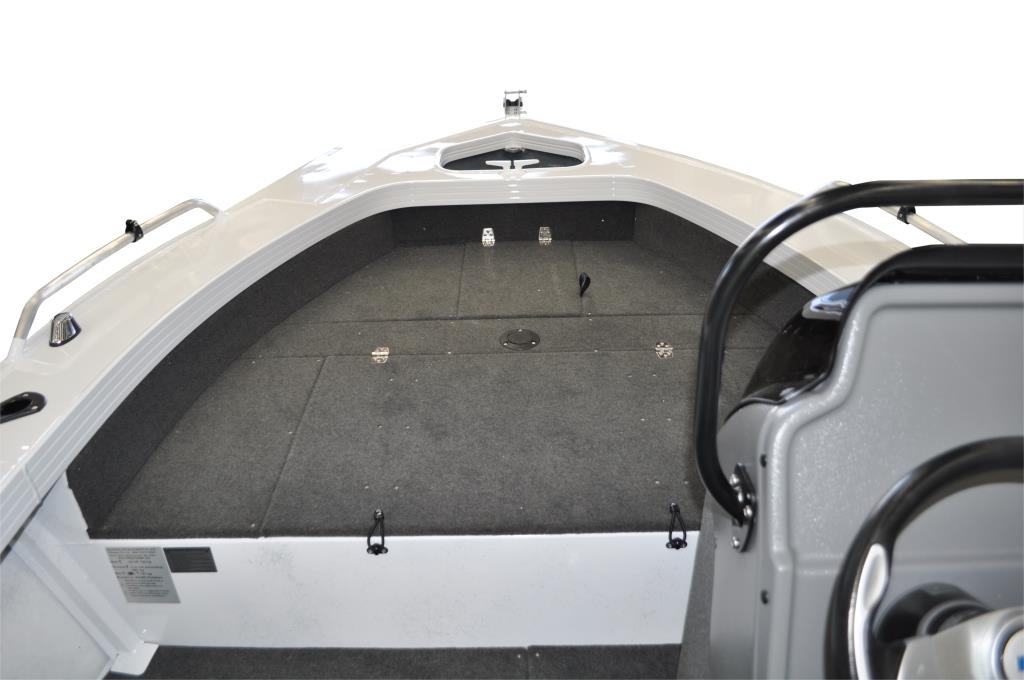

| Casting Platform Raised |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Side Decks Extruded |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Welded Gunnels and Top Decks |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |

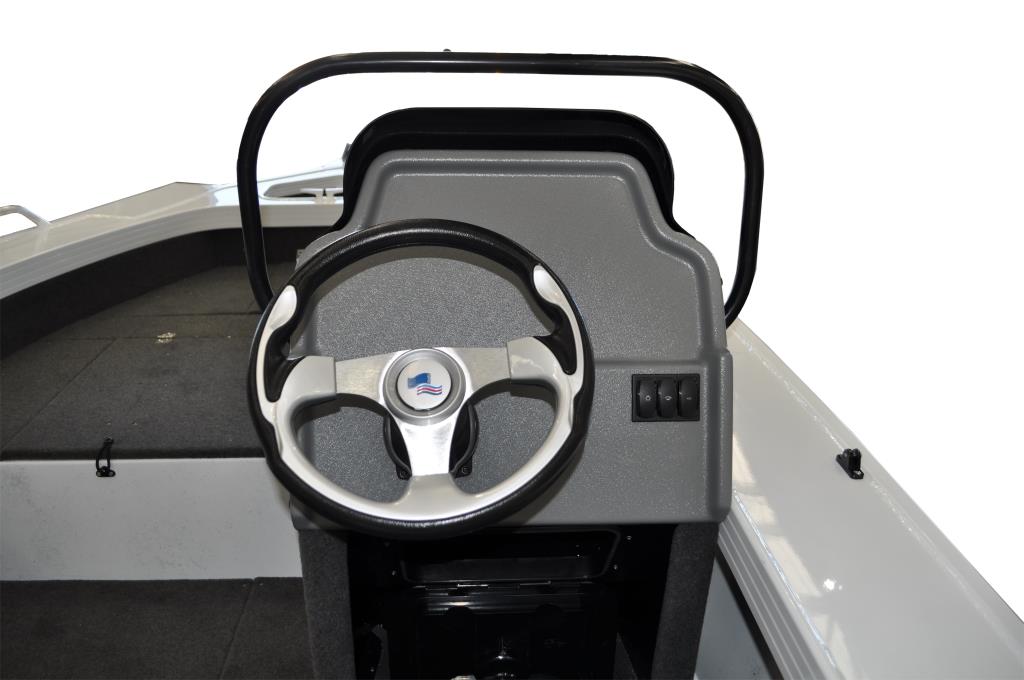

| Helm: Side Console |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Mechanical Tilt Steering |
✓ |
✓ |
✓ |
✓ |
X |
X |
X |
| Hydraulic Steering |
X |
X |
X |
X |
✓ |
✓ |
✓ |
| Battery Box |
✓ |
✓ |
X |
X |
X |
X |
X |
| Underfloor Storage |
X |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |

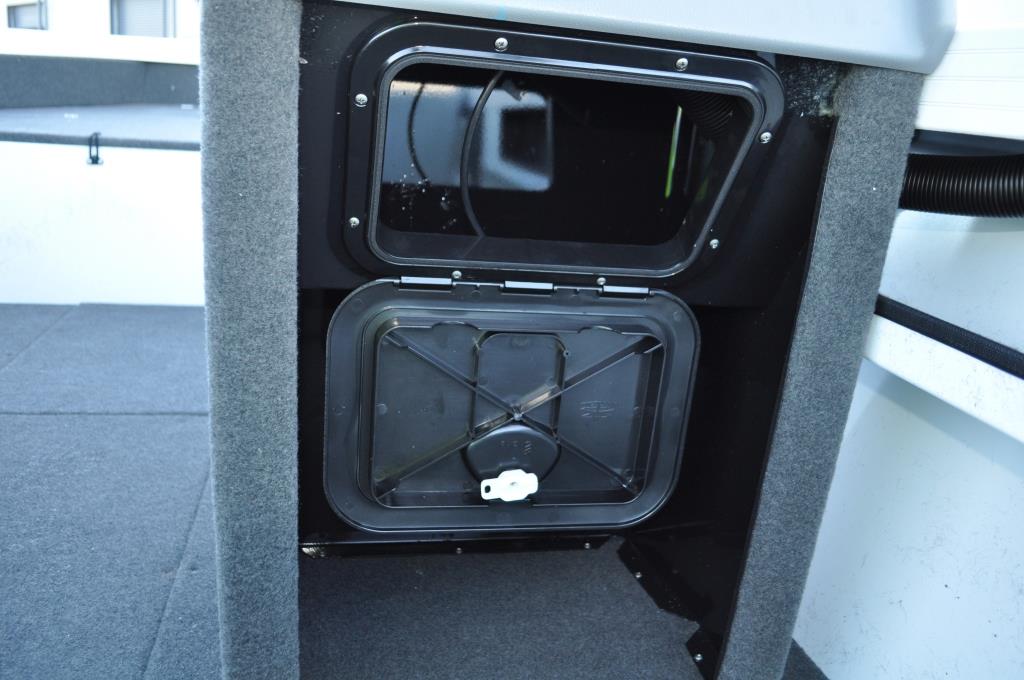

| Glove Box |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Side Pockets |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |

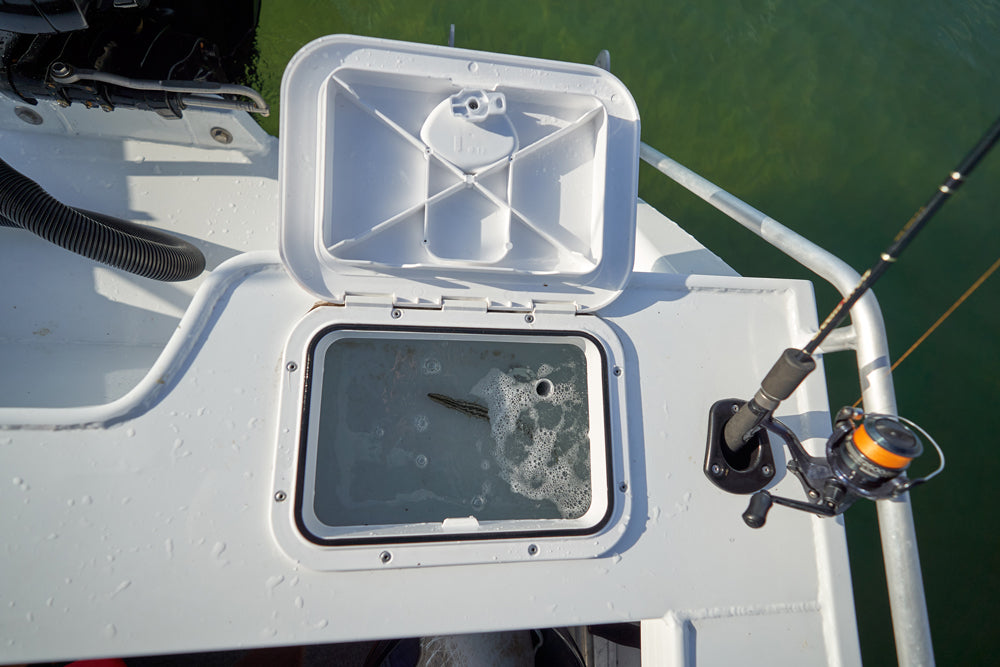

| Live Bait Tank |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Rod Holders (4) |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Pole Mount Insert |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Anchorwell |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Drink Holder Cups |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Rear Ladder |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Seat Positions (4) |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Seats: Pedestal |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| GT54UHD - Transom Mount Transducer |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Transducer Brackets x 2 |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Scuppers |
X |
X |
X |
✓ |
✓ |
✓ |
✓ |
