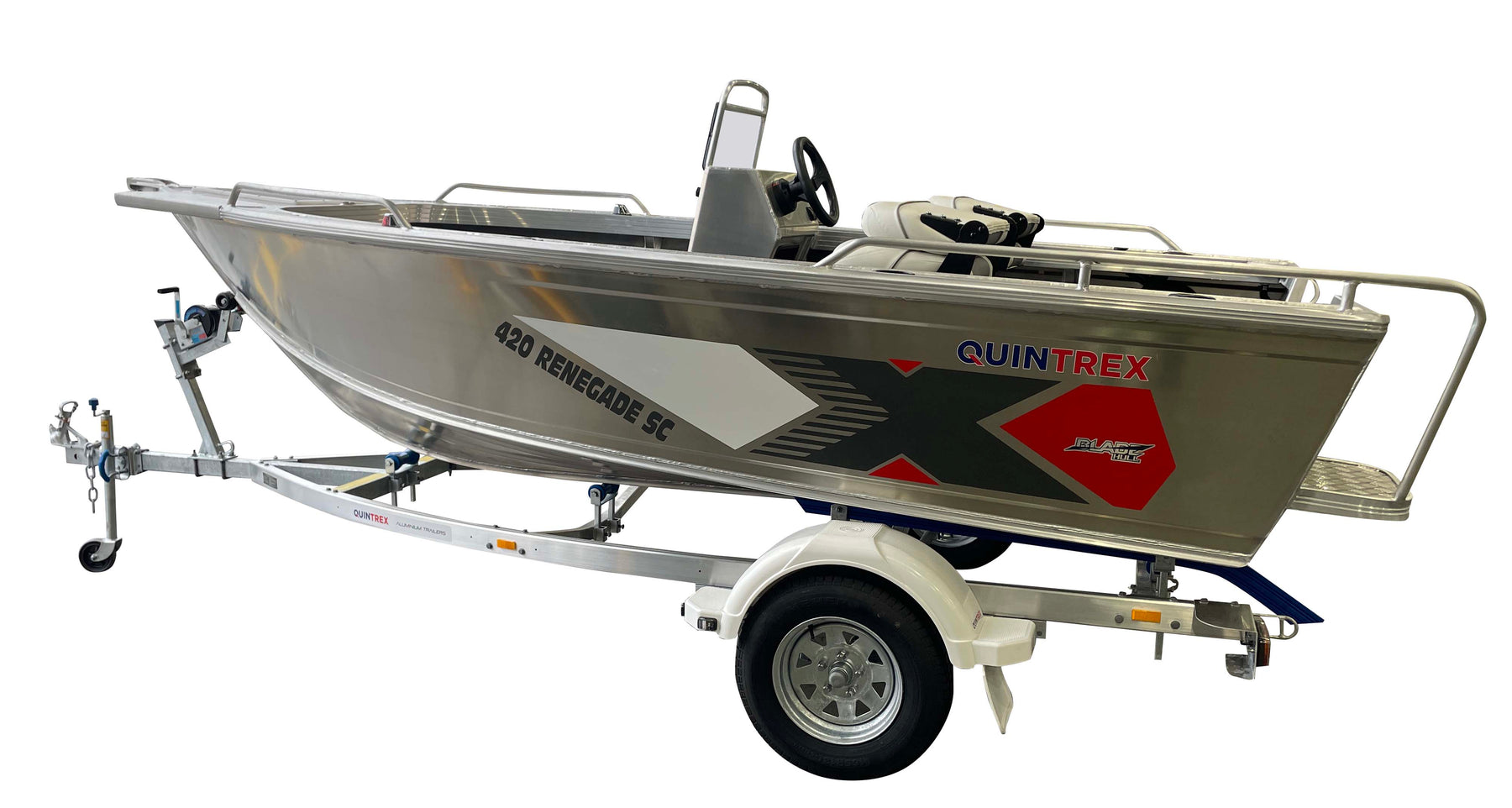

The Renegade is the epitome of the quintessential fishing experience. Don’t be fooled by the size of the 420 Renegade Side Console - with its wide beam it will carry your mates and all your fishing gear with ease.
| Specification |
420 |
440 |
460 |
490 |
530 |
570 |
| Hull Length |
4.42 m |
4.68 m |
4.88 m |
5.17 m |
5.58 m |
5.95 m |
| Beam |
2.09 m |
2.12 m |
2.22 m |
2.25 m |
2.25 m |
2.24 m |
| Max. HP |
50 hp |
60 hp |
75 hp |
90 hp |
115 hp |
140 hp |
| Number of People |
4 |
5 |
5 |
5 |
5 |
6 |
| Fuel Tank Capacity |
- |
50 L |
77 L |
77 L |
95 L |
95 L |
| Boat Weight |
374 kg |
402 kg |
444 kg |
472 kg |
499 kg |
549 kg |
| Motor Weight |
130 kg |
130 kg |
166 kg |
185 kg |
195 kg |
206 kg |
| Transom Shaft Length |
LS |
LS |
LS |
LS |
LS |
LS |
| Top Sides Thickness |
3 mm |
3 mm |
3 mm |
3 mm |
3 mm |
3 mm |
| Bottom Sides Thickness |
3 mm |
3 mm |
3 mm |
3 mm |
3 mm |
4 mm |
| Transom Material Thickness |
3 mm |
3 mm |
3 mm |
3 mm |
3 mm |
4 mm |
| Feature |
420 |
440 |
460 |
490 |
530 |
570 |
| Casting Platform |
|
|
|
|
|
|
| Blade Hull |
|
|
|
|
|
|
| Side Console & Mechanical Steering |
|
|
|
|
|
|
| Rear Casting Platform & LBT |
|
|
|
|
|
|
| Live Bait Tank |
|
|
|
|
|
|
| Rod Holders (4) |
|
|
|
|
|
|
| GT54UHD Transducer |
|
|
|
|
|
|
| Transducer Brackets (2) |
|
|
|
|
|
|
| Bow Mount Thruster Plate |
|
|
|
|
|
|
| Anchorwell |
|
|
|
|
|
|
| Battery Box |
|
|
|
|
|
|
| Bow Roller |
|
|
|
|
|
|
| Alloy Cleat on Front Deck |
|
|
|
|
|
|
| Centre Console Deck |
|
|
|
|
|
|
| Extruded Side Decks |
|
|
|
|
|
|
| Side Pockets |
|
|
|
|
|
|
| Smooth Topsides |
|
|
|
|
|
|
| Transom Step & Rail |
|
|
|
|
|
|
| Drink Holder Cups |
|
|
|
|
|
|
| Side Rails |
|
|
|
|
|
|
| Seat Positions (3) |
|
|
|
|
|
|
| Pedestal Seats |
|
|
|
|
|
|
